Standard Specification

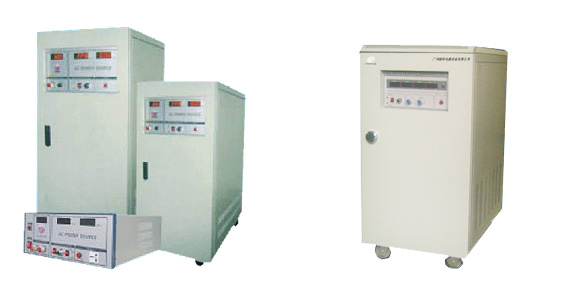

Three-phase power inverter power supply series is widely used in a variety of professional areas, and to provide customers with a systematic power solutions: environmental considerations from the power load with the optimization of the matching power supply selection, fitting the needs of design, fine beneficial and efficient manufacturing, complete and timely maintenance, etc., can fully meet the needs of customers.

Main features of variable frequency power supply

☆ separable (independent), no power transformer structure is not isolated input and output isolation
☆ High Precision Frequency regulation, rapid adjustment knob voltage, frequency
☆ precision digital LED meter displays: voltage, current, frequency, active power, power factor (A, B, C phase can be any switch)
☆ fast transient response, to 100% load / to load, the regulator response time 2ms
☆ output frequency: 50Hz, 60Hz, 47 ~ 63Hz, 400Hz, load frequency stability of ± 0.1%
☆ Output voltage: Phase voltage 0 ~ 300V (line voltage from 0 to 520), can simulate the voltage around the world
☆ phase: 120 ° ± 2 °
☆ has over-voltage, over current, overload, over temperature protection and alarm functions, such as multiple

Technical parameters Frequency Power

Model(YK-BP)
8303
8306
8310
8320
8330
8345
8360
83100
83300
83600
Capacity(KVA)
3
6
10
20
30
45
60
100
300
600
Capacity per phase(KVA)
1
2
3.4
6.7
10
15
20
50
100
200
Circuit mode
IGBT/SPWM方式
Communication
Single-phase220V/50Hz,60Hz
Three-phase380V/50Hz,60Hz
AC output
Phase
Three-phase five-wire, phase 120 ° ± 2 °
Voltage
Low
Phase voltage: 0 ~ 150V; line voltage: 0 ~ 260V
Height
Phase voltage: 0 ~ 300V; line voltage: 0 ~ 520V
Frequency
47Hz~63Hz、50Hz、60Hz、400Hz(可选)
Maximum current
Low voltage
4.5
18
30.6
60.3
90
135
180
306
900
1800
Voltage level
2.3
9
15.3
30.2
45
67.5
90
153
450
900
Frequency stability
≤±0.1%
Load regulation
≤±0.5%
Waveform distortion
≤1%(Resistive load)
Reaction time
≤2ms
Resolution instructions
Digital Frequency Meter
4-digit display resolution 0.1Hz
A, B, C phase can be any switch display
Digital voltmeter
True RMS 4-digit display resolution 0.1V
Digital Panel Meter
True RMS 4-digit display resolution 0.01A
Digital Power Meter
4-digit display resolution 1W RMS
Power Factor Meter
4-digit display resolution 0.001
Protector
Over-voltage, over current, overload, over temperature & short circuit protection and alarm and automatic trip device.
Cooling
Forced fan cooling

Insulation Resistance
500VDC/200MΩ
Insulation voltage
1800VAC/5mA/1min
工作环境
Temperature 0 ℃ ~ 45 ℃, 0 ~ 90% relative humidity (non-condensing)
Shape
Shape
(mm)
420×520
×600
1100×600
×710
1200×700
×1020
1200×850
×1020
1200×900
×1520
BP81000*3
BP81200*3
Weight
(Kg)
70
85
180
300
315
490
600
850
1200
1800
