WYJ Single DC Power - DC adjustable voltage stabilized power supply

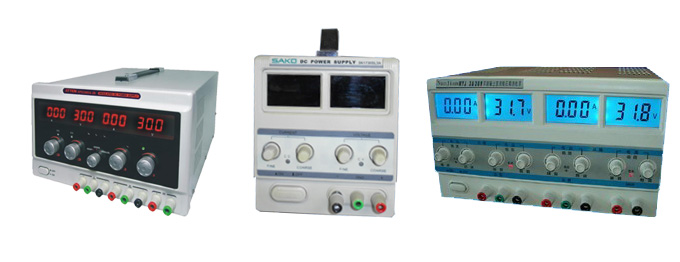

DC power (dual output source) Description:
Dual output power supply can output the two different voltage values of voltage, but also in series or in parallel to form positive and negative DC power supply or increase the output current capability. Dual DC power supply for the two sets of completely independent internal DC power system, when used in tandem when the power output, maximum voltage DC power supply output voltage output voltage is the sum of the two. When the two parallel output, the output current is the sum of two currents.
Technical parameters
|
Input Voltage |
Single-phase 220V ± 10%, or three-phase 380V ± 10% |
|
Input Frequency |
50Hz±2% |
|
Output Voltage |
Continuously adjustable DC：0-15/0-30/0-60V/0-120V/150V/0-200v/0-250V/0-300V/0-500V/0-600v/0-1000v |
|
Output Current |
Continuously adjustable（DC：0-1A/2A/3A/5A/10A/15A/20A/30A/50A--5000A ） |
|
Protection |
Overvoltage and current limit protection and short circuit protection |
|
Source Effect |
CV≤1×0.0001+0.5mV CC≤2×0.001+1mA (5A以下） CV≤2×0.0001+3mV CC≤5×0.001+3mA(20A以下） |
|
Load Effect |
CV≤1×0.0001+2mV CC≤2×0.001+3mA (5A以下） CV≤2×0.0001+10mV CC≤5×0.001+10mA(20A以下） |
|
Ripple and noise |
CV≤1mVrms CC ≤5mArms (5A以下）CV≤3mVrms CC ≤10mArms (20A以下）
|
|
Ambient temperature |
0℃～+40℃ |
|
Relative Humidity
|
20～85% |

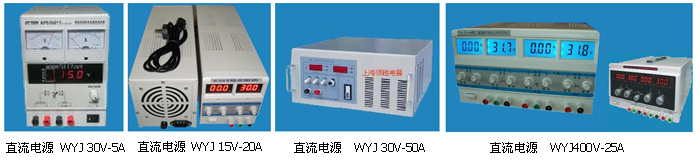

WYJ DC Single Output (adjustable linear regulator stabilized power supply)
|
Specifications |
Output Current |
Output Voltage |
Size lwh mm |
|
0-15V Adjustable
Single Output |
0-2A |
0-15V |
285*155*135 |
|
0-3A |
0-15V |
285*155*135 |
|
0-5A |
0-15V |
285*155*135 |
|
0-10A |
0-15V |
390*220*260 |
|
0-15A |
0-15V |
390*220*260 |
|
0-20A |
0-15V |
450*220*400 |
|
0-30A |
0-15V |
450*220*400 |
|
0-50A |
0-15V |
490*260*430 |
|
0-80A |
0-15V |
520*420*650 |
|
0-100A |
0-15V |
580*350*800 |
|
0-200A |
0-15V |
580*350*800 |
|
0-300A |
0-15V |
580*350*800 |
|
0-500A |
0-15V |
650*460*1000 |
|
0-30V Adjustable
Single Output |
0-2A |
0-30V |
285*155*135 |
|
0-3A |
0-30V |
285*155*135 |
|
0-5A |
0-30V |
285*155*135 |
|
0-10A |
0-30V |
390*155*135 |
|
0-15A |
0-30V |
390*155*135 |
|
0-20A |
0-30V |
480*250*300 |
|
0-30A |
0-30V |
480*250*300 |
|
0-50A |
0-30V |
600*275*450 |
|
0-80A |
0-30V |
570*350*800 |
|
0-100A |
0-30V |
570*350*800 |
|
0-150A |
0-30V |
570*350*800 |
|
0-200A |
0-30V |
650*460*1000 |
|
0-300A |
0-30V |
650*460*1000 |
|
0-500A |
0-30V |
650*460*1300 |
|
0-60V Adjustable
Single Output |
0-2A |
0-60V |
285*155*135 |
|
0-3A |
0-60V |
285*155*135 |
|
0-5A |
0-60V |
390*160*155 |
|
0-10A |
0-60V |
460*220*400 |
|
0-15A |
0-60V |
460*220*400 |
|
0-20A |
0-60V |
460*220*400 |
|
0-30A |
0-60V |
490*260*430 |
|
0-50A |
0-60V |
490*260*430 |
|
0-80A |
0-60V |
570*350*800 |
|
0-100A |
0-60V |
570*350*800 |
|
0-150A |
0-60V |
650*460*1000 |
|
0-200A |
0-60V |
650*460*1000 |
|
0-150A |
0-60V |
650*460*1300 |
|
0-300A |
0-60V |
650*460*1300 |
|
0-500A |
0-60V |
650*650*1500 |
|
0-120V Adjustable
Single Output |
0-2A |
0-120V |
390*220*260 |
|
0-3A |
0-120V |
390*220*260 |
|
0-5A |
0-120V |
450*220*400 |
|
Specifications |
Output Current |
Output Voltage |
Size lwh mm |
|
0-120V Adjustable
Single Output |
0-10A |
0-120V |
450*220*400 |
|
0-15A |
0-120V |
450*220*400 |
|
0-20A |
0-120V |
490*260*430 |
|
0-30A |
0-120V |
490*260*430 |
|
0-50A |
0-120V |
570*350*800 |
|
0-80A |
0-120V |
650*460*1000 |
|
0-100A |
0-120V |
650*460*1000 |
|
0-150V Adjustable
Single Output |
0-1A |
0-150V |
375*220*250 |
|
0-2A |
0-150V |
375*220*250 |
|
0-3A |
0-150V |
375*220*250 |
|
0-5A |
0-150V |
460*220*400 |
|
0-10A |
0-150V |
460*220*400 |
|
0-15A |
0-150V |
460*220*400 |
|
0-20A |
0-150V |
510*420*650 |
|
0-30A |
0-150V |
510*420*650 |
|
0-50A |
0-150V |
570*350*800 |
|
0-80A |
0-150V |
650*460*1000 |
|
0-100A |
0-150V |
650*460*1000 |
|
0-150A |
0-150V |
650*460*1000 |
|
0-200V Adjustable
Single Output |
0-1A |
0-200V |
450*220*400 |
|
0-2A |
0-200V |
450*220*400 |
|
0-3A |
0-200V |
450*220*400 |
|
0-5A |
0-200V |
450*220*400 |
|
0-10A |
0-200V |
450*220*400 |
|
0-15A |
0-200V |
490*260*430 |
|
0-20A |
0-200V |
490*260*430 |
|
0-30A |
0-200V |
510*420*650 |
|
0-50A |
0-200V |
510*420*650 |
|
0-80A |
0-200V |
650*460*1000 |
|
0-100A |
0-200V |
650*460*1000 |
|
0-150A |
0-200V |
650*560*1200 |
|
0-300V Adjustable
Single Output |
0-1A |
0-300V |
460*220*400 |
|
0-2A |
0-300V |
460*220*400 |
|
0-3A |
0-300V |
460*220*400 |
|
0-5A |
0-300V |
460*220*400 |
|
0-10A |
0-300V |
490*260*430 |
|
0-15A |
0-300V |
490*260*430 |
|
0-20A |
0-300V |
510*420*650 |
|
0-30A |
0-300V |
510*420*650 |
|
0-50A |
0-300V |
570*350*800 |
|
0-500V Adjustable
Single Output |
0-1A |
0-500V |
450*220*400 |
|
0-2A |
0-500V |
450*220*400 |
|
0-3A |
0-500V |
490*260*430 |
|
0-5A |
0-500V |
490*260*430 |
|
0-10A |
0-500V |
510*420*650 |
|
Specifications |
Output Current |
Output Voltage |
Size lwh mm |
|
0-15V Adjustable
Single Output |
0-2A |
0-15V |
270*260*160 |
|
0-3A |
0-15V |
270*260*160 |
|
0-5A |
0-15V |
270*260*160 |
|
0-10A |
0-15V |
270*260*160 |
|
0-15A |
0-15V |
480*250*300 |
|
0-20A |
0-15V |
480*250*300 |
|
0-30A |
0-15V |
600*275*450 |
|
0-50A |
0-15V |
600*275*450 |
|
0-60V Adjustable
Single Output |
0-2A |
0-60V |
270*260*160 |
|
0-3A |
0-60V |
400*260*160 |
|
0-5A |
0-60V |
400*260*160 |
WYJ Series DC Single Output (adjustable linear regulators stabilized power supply)
DC power WYJS30V-20A (Dual)
|
Specifications |
Output Current |
Output Voltage |
Size lwh mm |
|
0-30V Adjustable
Dual Output |
0-2A |
0-30 V |
270*260*160 |
|
0-3A |
0-30V |
270*260*160 |
|
0-5A |
0-30V |
270*260*160 |
|
0-10A |
0-30V |
400*260*160 |
|
0-15A |
0-30V |
430*200*350 |
|
0-20A |
0-30V |
600*275*450 |
|
0-30A |
0-30V |
600*275*450 |
|
0-50A |
0-30V |
600*275*450 |
|
0-60V Adjustable
Dual Output |
0-10A |
0-60V |
400*260*160 |
|
0-20A |
0-60V |
480*220*400 |
|
0-30A |
0-60V |
480*220*400 |  |
