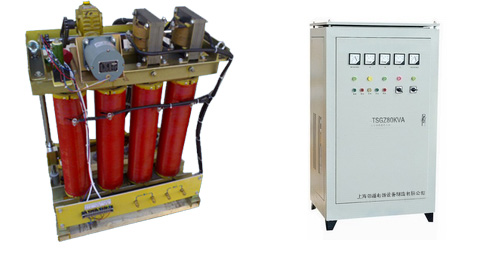

Series voltage regulator for the fourteenth installment of mechanical and electrical energy-saving products industry. Used in voltage, temperature, speed, dimming, power control and other places, the use of very wide scope. ZTDGC2, ZTSGC2 series single, three-phase electric power regulator column is my own development company with market demand, design, production of high-power voltage regulator column of new products to meet customers needs.
Column electric voltage regulator with output voltage waveform distortion (the output voltage waveform distortion increment <1%), post the use of electric power voltage regulator operating mechanism, which can reduce labor intensity. Output starting from zero voltage regulation, transient overload strong, no-load current, load loss, high efficiency, low noise and long life. Suitable for a variety of inductive, capacitive, resistive load to use features. Widely used in chemical, metallurgy, instrumentation, machinery, light industrial, utility equipment, and household appliances. Single-phase electric power pole ZTDGC2 regulator
Specifications |
Output Current(A) |
Dimensions(cm) |
|
输出电流(A) |
Dimensions(cm) |
ZTDGC2-50KVA |
200 |
60×63×150 |
ZTDGC2-100KVA |
400 |
70×120×170 |
ZTDGC2-63KVA |
252 |
70×120×170 |
ZTDGC2-125KVA |
500 |
70×120×170 |
ZTDGC2-80KVA |
320 |
70×120×170 |
|
|
|
ZTSGC2 Three-phase electric power regulator column
|
Output Current(A) |
Dimensions(cm) |
|
Output Current(A) |
Dimensions(cm) |
ZTSGC2-50KVA |
67 |
70×63×170 |
ZTSGC2-125KVA |
168 |
70×120×170 |
ZTSGC2-63KVA |
84 |
70×63×170 |
ZTSGC2-160KVA |
215 |
120×150×170 |
ZTSGC2-80KVA |
107 |
70×120×170 |
ZTSGC2-200KVA |
269 |
120×150×170 |
ZTSGC2-100KVA |
134 |
70×120×170 |
ZTSGC2-250KVA |
335 |
120×150×180 | |
