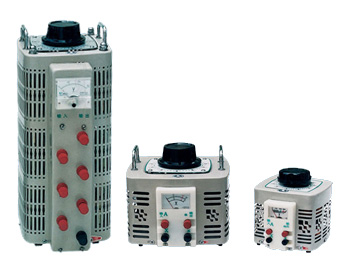

Single, three-phase contact auto (new) regulator
BACK
Standard Specification
I. Overview
Series voltage regulator for the fourteenth installment of mechanical and electrical energy saving products industry. Used in voltage, temperature, speed, dimming,
Power control and other places, the use of a wide range. TDGC2, TSGC2 square in shape, beautiful, is a new type products.
Second, the scope
Chemical industry, metallurgy, instrumentation, machinery, light industrial, utility equipment, household appliances.
Third, the technical performance
Input Voltage
220V±10%,
Output Voltage
0-250V±10%
Operating frequency
50Hz/60Hz
Efficiency
>90%
Waveform distortion
No additional waveform distortion
Electric strength
1500V/1min
Insulation resistance
Single-phase> 5M, three-phase> 2M
Fourth, model specifications
Specifications（KVA）
Dimensions(cm)
Weight(kg)
Packing size(cm)
Sets to
TDGC2 Single-phase series
0.2KVA
12×11×12
3
32×28×15
4
0.5KVA
14×13×13
4
33×18×31
4
1KVA
20×18×18
6.5
43×24×44
4
2KVA
20×18×20
9
43×24×44
4
3KVA
22×20×20
11
48×28×26
2
5KVA
31×24×24
16
31×28×30
1
10KVA
31×24×41
36
40×32×34
1
15KVA
31×24×56
48
38×32×65
1
20KVA
31×24×77
56
43×32×88
1
30KVA
31×24×110
105
43×32×117
1
TSGC2 Three-phase series
0.6KVA
15×12×33
10
33×25×53
2
1.5KVA
17×13×34
14
39×31×40
2
3KVA
27×17×42
20
34×26×50
1
6KVA
26×21×46
28
32×26×54
1
9KVA
28×21×48
35
35×29×58
1
15KVA
32×24×57
48
38×32×65
1
30KVA
33×24×110
105
43×32×117
1
Fifth, install, use and maintenance
1, the power supply should meet the regulators input voltage on the nameplate;
2, the regulator must have good ground to ensure safety;
3, the use of regular attention should be no more than rated output current, or voltage regulator reduced life easy to make, and even burned;
4, should be used evenly rotating hand wheel slowly to avoid damage caused by brush or spark;
5, should always check the use of the regulator, if found excessive brush wear, defects, loss in time for the same specifications of the brush, and sandpaper pad with zero handwheel in the brush several times below, so that power Brush the bottom removed, good contact, use only;
6, the coil and the brush contact surfaces should be kept clean, or easy to increase the spark and burn the coil surface. Coil surface is found burned with black spots, dip cotton available alcohol wipe, remove spots until the surface so far;
7, from the power supply to the regulator, regulator to the load of the wire and the wire terminals should be in good contact and rated current through the voltage regulator;
8, when the regulator can not move his hands round, and the application filed handle or move the product;
9, the regulator need to install a large cross-panel or the base stand installed in the other regulator can be used when the base of the mounting holes to be fixed;
10, the regulator often does not allow protection of clean water droplets, oil and other fall into the internal voltage regulator, power regulator to regularly remove the internal accumulation of dust;
