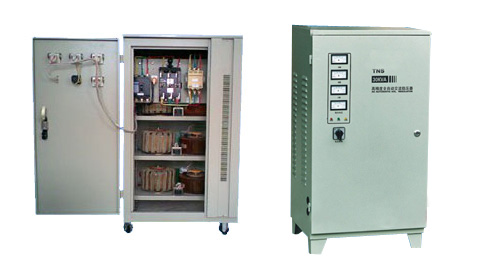

SVC TNS series of three-phase high accuracy full automatic AC voltage stabilizer
BACK
Standard Specification

Overview
TNS (SVC) series three-phase high accuracy full automatic AC voltage stabilizer SVC series single-phase power supply is automatically regulated power supply high-performance combination of power input phase for the three-phase four-wire system, the output voltage for the phase voltage 220V, 380V line voltage Within the rated capacity, which can supply power voltage is 380V single-phase 220V or three phase electrical equipment to use.
Scope
Computers, copiers, test equipment, lighting equipment, television equipment, air conditioning equipment, medical equipment, communications equipment, industrial automation equipment.
Technical parameters

Name

Parameters

Name

Parameters

Input Voltage

Phase voltage 150V-250V or 260V-430V three-phase line voltage

Ambient temperature

-5℃~+40℃

Output Voltage

Phase voltage 220V or 380V ± 3% line voltage three-phase T

Efficiency

> 95% ± 5V phase

Frequency

50 Hz ~60 Hz

Overvoltage protection

425

Adjustment time

<1 second (input voltage change of 10%)

Delay

Short length of 5 ± 2 minutes 3 ​​seconds

Temperature rise

＜60ºC(full load)

Load power factor

0.8

Waveform distortion

No additional waveform distortion

Dielectric strength

1500V/min

Relative humidity

20~85%

Insulation resistance

Three-phase>2MΩ


Model Specification Overview (SVC single-phase high accuracy full automatic AC voltage stabilizer)

        SVC series single, three phase high accuracy full automatic AC voltage stabilizer (power supply), pressure from the auto-contact, servo motor, automatic control circuit and other components, when the grid voltage instability or Load changes, automatic sampling Regulator control circuit to drive the servo motor signal, adjust the auto regulator voltage regulator brushes, and make adjustments to the regulator output voltage rating and stable state.
      The series voltage regulator for the ordinary type, there is electricity through function. The series voltage regulator products, varieties, specifications, beautiful appearance and so on. With waveform distortion, high efficiency, reliable performance, long run and so on, the regulator has a short delay, such as over-voltage protection, according to the needs of users can add time-lapse and undervoltage protection. The regulator can be widely applied to any electrical locations, is an ideal power supply (regulator) to ensure the normal operation of your electrical equipment.
  Use occasions (SVC single-phase high accuracy full automatic AC voltage stabilizer)
       Regulator of this paragraph can be used for office equipment, test equipment, medical equipment, industrial automation equipment, household appliances, lighting systems, communication systems, any power of place.
  The main technical parameters (SVC single-phase high accuracy full automatic AC voltage stabilizer)

Input Voltage 160V-250V
Three-phase 277-430V (three-phase four-wire)		   Adjustment time <1秒(输入电压变化10%时)
Output Voltage Single-phase 220V与110V（0.5kVA-3kVA）
Single-phase 220V（5kVA-30kVA）
Phase voltage 380V three-phase line voltage 220V		 Ambient temperature -10℃-+40℃
Temperature rise <60℃
Regulation accuracy Phase voltage220V±3% 110V±6% Waveform distortion No additional waveform distortion
Frequency 50Hz/60Hz Load power factor 0.8
Overvoltage protection 246V±4V Dielectric strength 1500V/1min
    Insulation resistance Single-phase> 5MΩ phase> 2MΩ
 型号规格 (SVC单、三相高精度全自动交流稳压器)
Phase Specification(kVA)

Dimensions
(D × W × H)(mm)

 Packing size
(D × W × H)(mm)		 Sets to    Phase Specification(kVA) Dimensions
(D × W × H)(mm)		 Packing size
(D × W × H)(mm)		 Sets to
Single-phase
(Desktop)		 SVC-0.5 170×190×130 440×250×350 4 Single-phase
(Vertical)		 SVC-5 290×240×400 310×290×480 1
SVC-1 200×220×160 550×280×400 4 SVC-8 290×240×400 400×350×520 1
SVC-1.5 200×220×160 550×280×400 4 SVC-10 290×240×420 400×350×520 1
SVC-2 260×240×190 340×320×500 2 SVC-15 400×330×650 480×450×900 1
SVC-3 290×220×240 620×380×340 2 SVC-20 400×330×650 480×450×900 1
SVC-5 290×220×190 540×320×270 1 SVC-30 530×430×1020 640×530×1120 1
SVC-8 570×270×240 710×400×350 1 SVC-45 790×430×1290 900×650×1400 1
SVC-10 570×270×240 710×400×350 1 SVC-60 790×430×1290 900×650×1400 1
Three-phase SVC-1.5 400×360×170 520×480×280 1 Three-phase SVC-20 430×510×910 640×550×1060 1
SVC-3 420×380×190 540×500×310 1 SVC-30 430×510×910 640×550×1060 1
SVC-4.5 420×380×190 540×500×310 1 SVC-45 650×130×950 780×550×1100 1
SVC-6 370×280×680 480×400×780 1 SVC-60 650×430×950 780×5500×1100 1
SVC-9 350×330×780 480×450×900 1
SVC-15 430×380×730 550×510×900 1

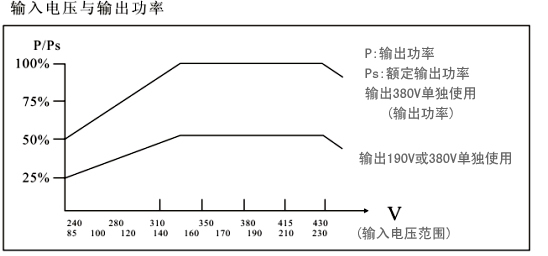

Selection tips (SVC single-phase high accuracy full automatic AC voltage stabilizer)
       1, the series regulator for indoor use only, please use under normal conditions of use.
       2, this series of three-phase voltage input for the three-phase four-wire connection, the case in the absence of zero is not working, otherwise it will cause damage to the regulator.
       3, to ensure the normal regulator output voltage, current, reduce the line power loss, please select a reasonable input and output wire cross-sectional area, generally used in the calculation of copper wire connected 5A/mm2, if the choice of aluminum conductors according 2.5A/mm2 Calculation.
