Lamp transformer lighting line
BACK
Standard Specification

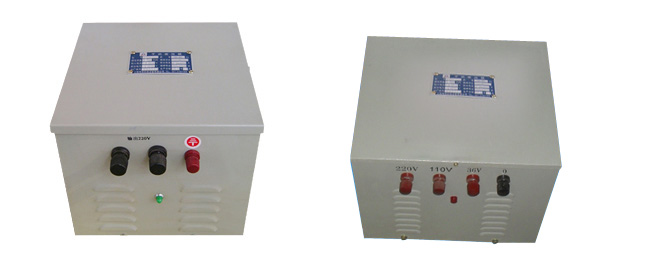

JMB, BJZ, DG, BZ (DM) Series Lighting Transformer for AC 50Hz, voltage 500V and below the circuit, machine tools and other equipment as a local light power.
JMB, BJZ, DG, series transformer is a series of transformers and protective shell BK composition, shell on both sides for input supply and load wiring terminal used, and for grounding to the grounding screw; BZ lighting transformer is the BK-50, BK-100 Control Transformer, LS3-2-type main switch and the composition of the protective housing, in the main switch is equipped with a fuse to protect the lighting circuit, with the main switch power from one end of the film at the introduction of dust, Through the main switch to making and breaking lamps.

Outline and installation size
JMB (BJZ, DG) series outline and mounting dimension table below, Figure 8

Model

Primary voltage(V)

Secondary voltage(V)

Dimensions

B

D

E

JMB(BJZ/DG)25VA

220/380 or based on user demand for the

63/12/24/36/110/127/220/380

Or based on user demand for the

145

160

120

JMB(BJZ/DG)50VA

145

165

120

JMB(BJZ/DG)100VA

145

165

120

JMB(BJZ/DG)150VA

165

155

130

JMB(BJZ/DG)200VA

165

155

130

JMB(BJZ/DG)250VA

175

200

150

JMB(BJZ/DG)300VA

175

200

150

JMB(BJZ/DG)400VA

205

230

170

JMB(BJZ/DG)500VA

205

230

170

JMB(BJZ/DG)700VA

220

285

180

JMB(BJZ/DG)1000VA

220

285

180

JMB(BJZ/DG)1500VA

260

320

220

JMB(BJZ/DG)2000VA

260

320

220

JMB(BJZ/DG)3000VA

260

360

240

JMB(BJZ/DG)5000VA

365

350

240



BZ-type product appearance and installation dimension

Model

Rated Capacity(VA)

Secondary voltage(V)

Primary voltage(V)

Dimensions(mm)

Mounting hole

(B×D×E)

BZ-50H

50

380 Or 220

12/24/36

118×212×92

Φ6.5

BZ-100H

100

118×212×104

Φ6.5
