1. Overview
 I produced the SG series three-phase dry type isolation transformator mainly used for various high and low voltage electrical, import and export of equipment, precision machine tools, UPS, electroplating, lighting, heating, communications, chemical industry equipment, control power, the power of Use, the product can effectively isolate the part of the harmonics, and strong anti-jamming and security and good. Small size, light weight, simple maintenance and reliable. Designed and manufactured in strict accordance with IEC international standards and relevant national standards GB.
 For the convenience of the user to select the appropriate product type, special instructions are as follows:

 Parameters are as follows:
 Rated capacity: 1kVA ~ 1000kVA
  Rated voltage: 660V, 480V, 380V, 220V, 200V, etc.
 Rated frequency: 50Hz, 60Hz
  Join group: Y, yn0, Y, d11, D, yn11 etc.
 Protection class: IP00, IP20
 Insulation grade: B grade, F grade, H grade

 2. use of the environment
  Altitude: ≤ 1000m
 Adapt to the environment temperature: -10 ~ +45 ℃
  To adapt to the relative temperature: 26 ℃ when, ≤ 95%
 Environment: indoor (outdoor use, please provide the protection level)

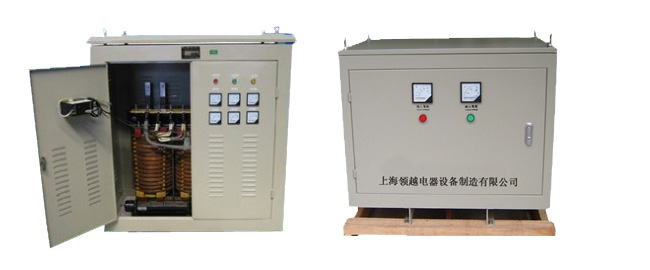

 3 Structure
Careful use of high-quality cold rolled silicon steel core stack from the system, according to the different insulation levels, the overall level of impregnation of different insulation insulating paint, can effectively reduce the transformer noise, reduce the salt spray, mold and other effects on the transformer. According to the different degrees of protection, the transformer box is made from high quality steel, the structure of both the full account of air circulation, and can effectively play a protective role, the transformer is also very easy to connect the cable connection, the design is full of humanity. Voltage based on user requirements can be installed ammeter, power light, molded case circuit breakers.
