 Single-phase dry transformer isolation |
|
 Standard Specification |

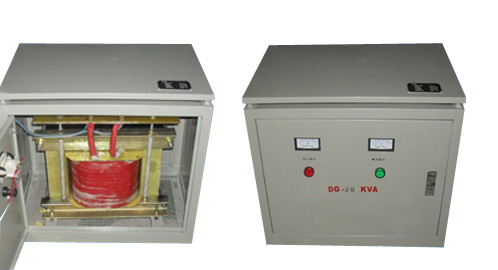

| Overview DG I produced a series of single-phase dry type transformer with a small size, light weight, simple maintenance and reliable. Designed and manufactured in strict accordance with IEC international standards and relevant national standards GB, for communications, power, chemical, light industry and other industries, can be used as lighting, power supply, power supply and other uses, and is widely used to import key equipment, precision machine tools, machinery and electronics equipment, power transformers. For the convenience of the user to select the appropriate product type, special instructions are as follows: 1. The relevant parameters are as follows: Rated capacity: 50VA ~ 1000kVA Rated voltage: 660V, 440V, 380V, 220V, 127V, 110V, 36V, 24V, 12V Rated frequency: 50Hz, 60Hz Protection class: IP00, IP20 Insulation grade: B grade, F grade, H grade 2. Use of the environment Altitude: ≤ 1000m Adapt to the environment temperature: -10 ~ +45 ℃ To adapt to the relative temperature: 26 ℃ when, ≤ 95% Environment: indoor (outdoor use, please provide the protection level) 3. Structure Careful use of high-quality cold rolled silicon steel core stack from the system, according to the different insulation levels, the overall level of impregnation of different insulation insulating paint, can effectively reduce the transformer noise, reduce the salt spray, mold and other effects on the transformer. According to the different degrees of protection, the transformer box is made from high quality steel, the structure of both the full account of air circulation, and can effectively play a protective role, the transformer is also very easy to connect the cable connection, the design is full of humanity. |
